• Black : Shipped out within 3 Business Days (In stock)
• Orange : Scheduled to ship in Jan (Pre order)

 Aluminum Full Fenders FREE $89.00

KBO Bike Rear Rack FREE $79.00

16-in-1 Repair Toolkit FREE $15.00

Water Bottle Holder FREE $24.90

Bicycle Frame Bag FREE $49.00

Electric Bicycles U-Lock FREE $49.00

• Specification




  • Battery: 48V 16Ah Lithium-ion battery with Samsung/LG cells

  • Range: 30~55 Miles

  • Hub Motor: Sustained 500W brushless gear motor

  • Total Payload Capacity: 300 lbs

  • Recommended Rider Heights: 5'4" ~ 6'4"

  • Charger: 3.0 Amp smart and quick charger

  • Controller: 48V / 18A

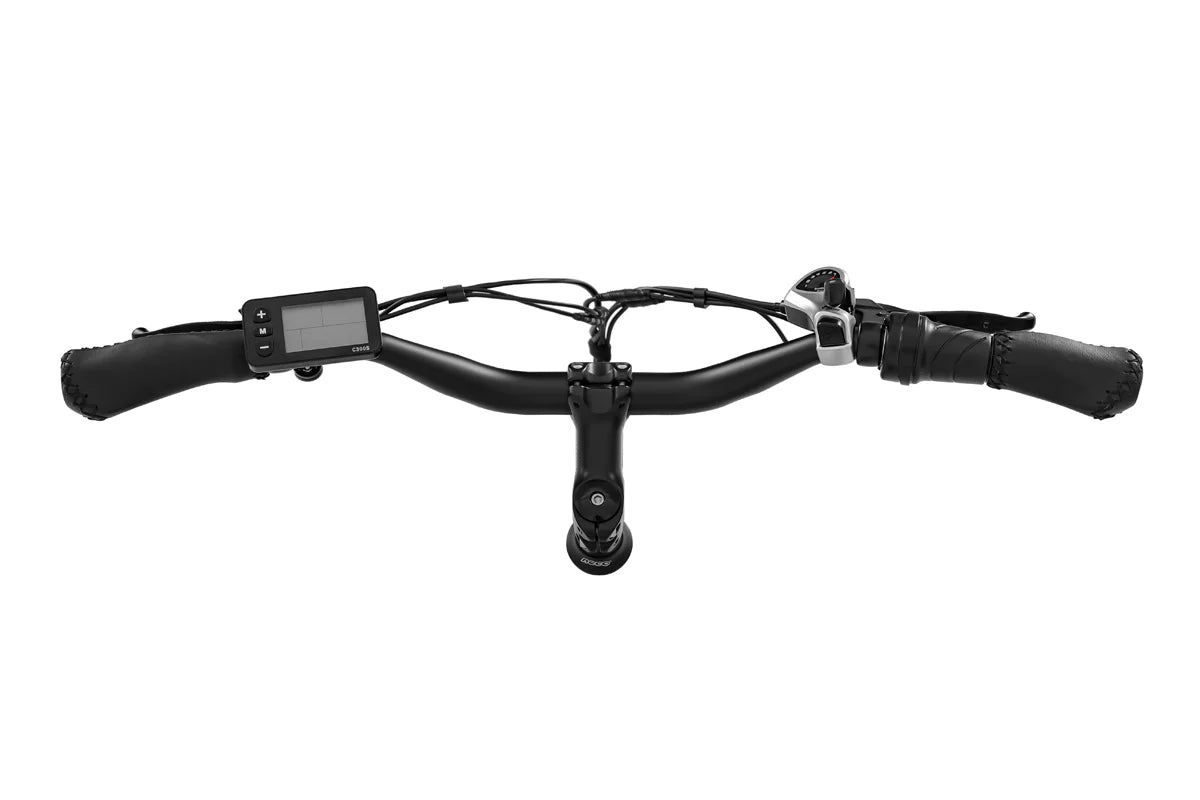

  • Display: LCD backlight display

  • Weight: 62lbs

  • Pedal Assist: 0~5 level

  • USB Charge: Available






  Components

  • Tires: 27.5" x 2.4" Panasonic puncture-resistant tires

  • Derailleur: Shimano 7 speed derailleur

  • Rear Light: Integrated brake taillight

  • Brake: 180mm brakes

  • Chain: KMC chain

  • Sensor: Sensitive cadence sensor and speed sensor

  • Crank: 170mm forged alloy

  • Front Suspension Fork: Amazing damping effect

  • Throttle: Twist the throttle on your right hand to accelerate

  • Pedal: Alloy pedal with reflectors

  • Bike Frame: 6061 Aluminum frame

  • Front Light: 48V LED light

  • Saddle: Sturdy and comfy saddle

  • Seat Post: Diameter 30.4mm / length 300mm

  • Kickstand: Heavy duty aluminum

  • Spokes: Stainless spokes ( 13G )

  • Stem Diameter: 31.8mm

  • Handlebar Diameter: Sides: 22.2mm / Middle: 31.8mm






  Geometry

  • 1 . Total Length 72"

  • 2 . Handlebar Height 46.5"

  • 3 . Wheelbase 45"

  • 4 . Minimum Seat Height 32"

  • 5 . Maximum Seat Height 40.5"

  • 6 . Chain Stay Length 19"

  • 7 . Standover Height 28.5"

  • 8 . Reach 16"

  • 9 . Wheel Diameter 27.5"

  • 10 . Head Tube Length 6"

  • 11 . Handlebar Length 27"

  • 12 . Seat Tube Length 18"

  • 13 . Minimum Pedal Height 5"





  *KBO has the right without notice to the consumer to substitute components of at least equal quality for advertised KBO ebike components in the event of the unavailability of such advertised components.
